IP QAM

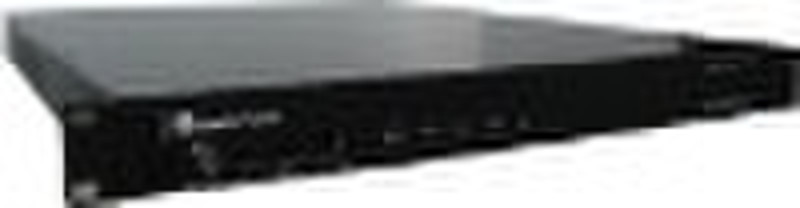

Sumavision 10K511 is a broadcasting-level and high density IP QAM (Edge QAM) Modulator which designed for broadcasting MPEG video over IP networks. It can be applied at any node of the system in the head-end, hub head-end and small area optical trunk network to realize data receiving, routing, multiplexing, scrambling, modulating, up-converting in Gigabit Ethernet for MPEG over IP. It can be widely used for cable digital television broadcasting and digital television VOD system. FEATURES Compatible with ITU-T T.83 Annex A, B, C international standard and DVB-C standard Optical or electrical Gigabit Ethernet input Redundant 1+1 optical Gigabit input using optional SFP modules High density 1RU chassis; support 4, 8, 12, 16, 20, 24 frequencies QAM channels Powerful background configuration and SNMP management system All frequency agility, 45-1000MHz Support 64, 128, 256 QAM mode, flexible with different cable networks Support both SPTS and MPTS transport stream receiving Centralized WEB management system, support both local and remote monitoring Perfect cooling system to ensure the long-time reliability Redundancy power supply system to strengthen the reliability Temperature automation control and protection system to adapt to different environment Support remote update _____________________________________________________________________________ More details see en.sumavision.com/Products.aspx?catID=4&subcatID=52&curID=54
